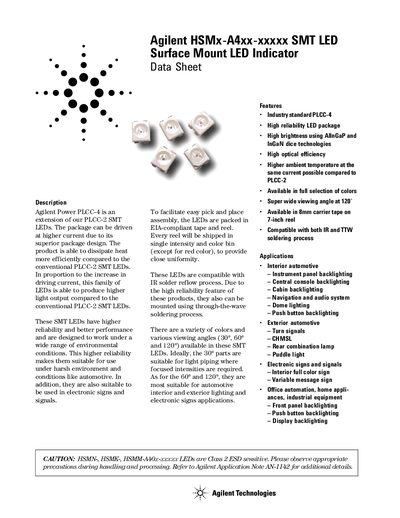

Agilent Power PLCC-4 SMT LEDs are an extension of our PLCC-2 SMT LEDs. The package can be driven at higher current due to its superior package design. The product is able to dissipate heat more efficiently compared to the conventional PLCC-2 SMT LEDs.
The HSMx-A4xx-xxxxx series are PLCC‑4 surface‑mount LEDs offering higher current capability, improved heat dissipation, and a wide range of colors and viewing angles. They are designed for harsh environments such as automotive interior/exterior lighting, electronic signs, and industrial equipment, and are supplied in EIA‑compliant tape‑and‑reel packaging.
The datasheet lists mechanical dimensions, absolute maximum ratings, optical and electrical parameters, and recommended soldering profiles for both IR reflow and through‑wave processes. It also includes part‑numbering, bin selection, and contact information for technical support.
| Package type | PLCC‑4 |
|---|---|
| Typical forward voltage (HSMC series) | 2.2 V @ 50 mA |
| Maximum forward current (HSMC series) | 70 mA |
| Reverse voltage | 5 V |
| Power dissipation (HSMC series) | 180 mW |
| Operating temperature range | -40 °C to +100 °C |
| Viewing angle (available options) | 30°, 60°, 120° |
The LEDs are supplied in EIA‑compliant tape‑and‑reel packaging, with each reel containing a single intensity and color bin.
The devices operate from –40 °C up to +100 °C.
Approximately 2.2 V at a forward current of 50 mA.
