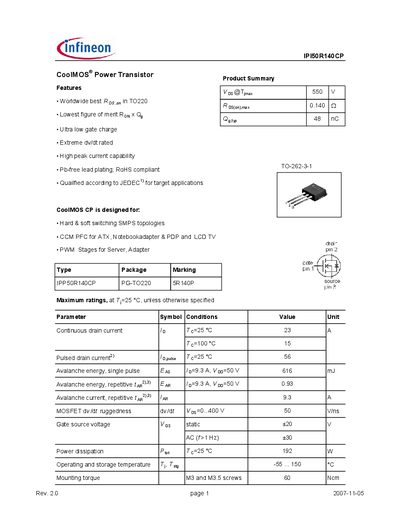

This document describes the features and characteristics of IPI50R140CP CoolMOS® power transistor, including worldwide best R DS ,on, lowest figure of merit RON x Qg, ultra low gate charge, extreme dv/dt rated, high peak current capability, etc.
The IPISOR140CP is a CoolMOS® power transistor offered by Infineon Technologies. It is designed for hard and soft switching SMPS topologies, including CCM PFC for ATX, notebook adapters and LCD TV applications.
Key specifications include a continuous drain current of 23 A, a typical on‑state resistance of 0.13 Ω, and a maximum power dissipation of 192 W. The device is supplied in a TO‑262‑3‑1 (TO‑220) package, is Pb‑free and RoHS compliant, and meets JEDEC qualification for target applications.
| Continuous drain current (Id) | 23 A @ 25 °C |
|---|---|
| Pulsed drain current (Id,pulse) | 56 A @ 25 °C |
| On‑state resistance (Rds(on)) | 0.13 Ω typical @ Vgs=10 V, Id=14 A |
| Power dissipation (Pd) | 192 W @ 25 °C |
| Operating temperature range | -55 °C to 150 °C |
| Output capacitance (Coss) | 110 pF |
| Total gate charge (Qg) | 48 nC |
The device can handle a continuous drain current of 23 A at 25 °C.
Typical Rds(on) is 0.13 Ω when Vgs=10 V and Id=14 A.
It is supplied in a TO‑262‑3‑1 (TO‑220) package.
Yes, the device is Pb‑free and RoHS compliant.
