PROFET® BTS 740S2 is a dual channel high side power switch with diagnostic feedback and current sense. It features a 5.0-34V operating voltage, a 30mΩ on-state resistance and a 24A load current limit.
The Infineon BTS 740S2 is a smart high‑side power switch featuring two independent channels, each capable of handling up to 8.5 A nominal load current. It integrates CMOS‑compatible inputs, proportional load‑current sensing, and a range of protection functions such as short‑circuit, overload, over‑voltage, and reverse‑battery protection.

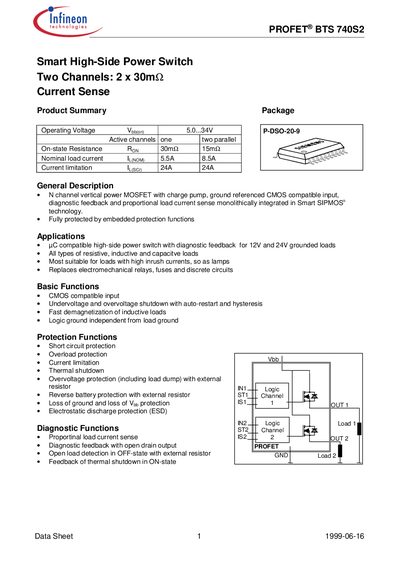

The datasheet provides detailed electrical characteristics, pin definitions, maximum ratings, and diagnostic features, along with package dimensions and ordering codes. It is intended for designers of automotive, industrial, and consumer electronics requiring reliable high‑side switching for resistive, inductive, or capacitive loads.
