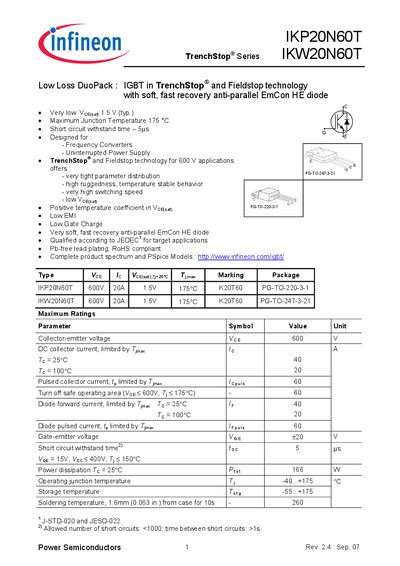

This datasheet mainly introduces the parameter information of IKP20N60T and IKW20N60T two IGBTs, including rated voltage, rated current, collector-emitter compression voltage, maximum junction temperature, marking, and package.
The IKP20N60T is a 600 V, 20 A TrenchStop® IGBT designed for frequency converters and UPS applications. It features low on‑state voltage, low gate charge, and a fast‑recovery anti‑parallel diode.
Key data include a collector‑emitter voltage rating of 600 V, a maximum power dissipation of 166 W at 25 °C, and a junction‑to‑case thermal resistance of 0.9 K/W. Switching characteristics such as turn‑on delay (18 ns at 25 °C) and turn‑off delay (12 ns) are also listed, together with typical output and capacitance curves.
| Collector‑emitter voltage (VCE) | 600 V |
|---|---|
| Maximum pulsed collector current | 60 A |
| Gate‑emitter voltage (VGE) | +20 V |
| Power dissipation at 25 °C | 166 W |
The device is rated for a maximum collector‑emitter voltage of 600 V.
The typical turn‑on delay time is 18 ns at a junction temperature of 25 °C.
It can dissipate up to 166 W when the case temperature is 25 °C.
