BSO094N03S OptiMOS®2 Power-Transistor is a fast switching MOSFET designed for switch-mode power supplies. It features optimized technology for notebook DC/DC converters and is qualified according to JEDEC standards for target applications. This N-channel logic level device has excellent gate charge x RDS(on) product (FOM) and very low on-resistance. It also has superior thermal resistance and is avalanche rated. The product is Pb-free plated and RoHS compliant.
The BSO094N03S is an N‑channel, logic‑level power MOSFET designed for notebook DC/DC converters and other SMPS applications. It offers low on‑resistance, fast switching, and high avalanche energy rating, while complying with RoHS and JEDEC standards.

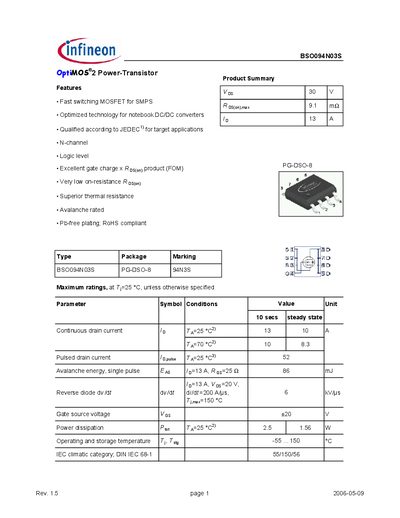

The datasheet provides maximum ratings, thermal and electrical characteristics, dynamic switching parameters, avalanche behavior, and the PG‑DSO‑8 package outline. It also includes typical values for capacitances, gate charge, and on‑state resistance, useful for designers selecting the device for high‑efficiency power conversion.
| Input capacitance (Ciss) | 1730 pF (typ) |
|---|---|
| Package type | PG‑DSO‑8 |
It is supplied in a PG‑DSO‑8 surface‑mount package.
