This data table lists the technical parameters of FP75R12KE3, including maximum rated values, such as peak reverse voltage, maximum DC collector current, etc.

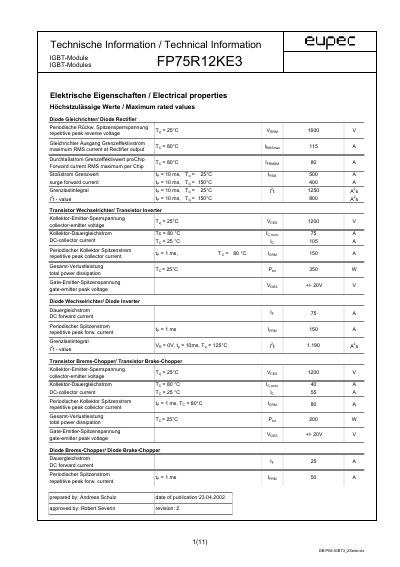

The EUPEC FP75R12KE3 IGBT module data sheet provides detailed electrical, thermal and mechanical specifications for the device. It includes characteristic values such as voltage ratings, current limits, power dissipation and thermal resistance for both the rectifier and inverter sections.
Additional information covers isolation test voltage, package dimensions, weight, and usage conditions. The document also contains a circuit diagram, package outline drawing and legal usage terms for technically trained personnel.
