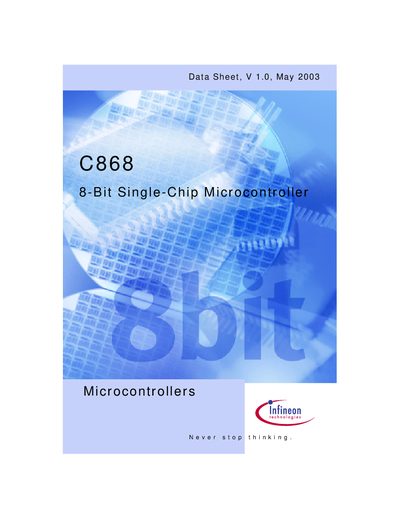

This is a data sheet about C868 8-Bit Single-Chip Microcontroller
The C868 is an 8‑bit single‑chip microcontroller compatible with the standard 8051 architecture, featuring a superset of 8051 with 8 datapointers, a 40 MHz internal CPU clock, and optional external clock of 6.67‑10.67 MHz. It offers 8 KB on‑chip program ROM (C868‑1R) or 8 KB program RAM (C868‑1S) and includes a 4 KB boot ROM for in‑system programming.
The device provides three 16‑bit timers/counters, a 5‑channel 8‑bit ADC, a full‑duplex UART, and a 13‑vector interrupt controller with four priority levels. Power options include a single 3.3 V supply with an internal 2.5 V regulator, and it is available in P‑DSO‑28‑1 and P‑TSSOP‑38‑1 packages covering temperature ranges from –40 °C to 85 °C or up to 125 °C depending on the package.
| Internal CPU clock | 40 MHz |
|---|---|
| External clock range | 6.67‑10.67 MHz at 50% duty cycle |
| Instruction cycle time | 300 ns @37.5 MHz |
| Program ROM | 8 KB |
| Program RAM | 8 KB |
| On‑chip RAM | 256 bytes |
| On‑chip XRAM | 256 bytes |
| I/O ports | One 8‑bit and one 5‑bit push‑pull ports |
| Sink current (Port 1/3) | 10 mA (max 43 mA @100 °C) |
| Timers/Counters | Three 16‑bit |
| ADC channels | 5‑channel 8‑bit |
| Interrupt vectors | 13 vectors, 4 priority levels |
| Watchdog Timer | Programmable 16‑bit |
| Power supply | 3.3 V single supply, 2.5 V core regulator |
| Package types | P‑DSO‑28‑1, P‑TSSOP‑38‑1 |
The C868 runs with a 40 MHz internal CPU clock.
It includes 256 bytes of on‑chip RAM.
The microcontroller is offered in P‑DSO‑28‑1 and P‑TSSOP‑38‑1 packages.
