This document is about the specifications of a certain product, including the rated input voltage, rated output voltage, maximum output current, operating temperature range, maximum conversion efficiency, etc.

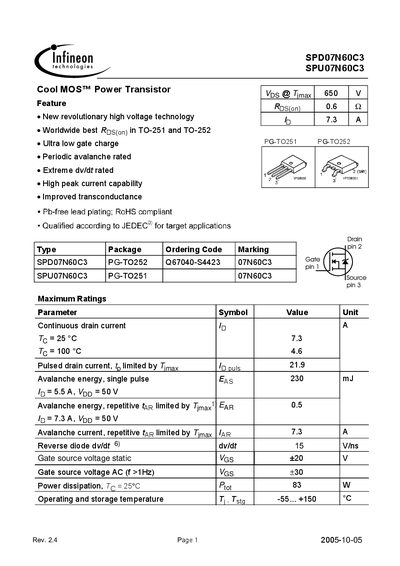

This datasheet provides detailed electrical, thermal and switching characteristics for the Infineon SPDO7N60C3 and SPU07N60C3 Cool MOS™ power transistors. It includes maximum ratings, thermal resistance values, on‑state resistance, gate charge data and typical output and switching waveforms.
The document also contains reference dimensions, package information (TO‑251, TO‑252) and compliance notes such as RoHS and JEDEC qualification. It is intended for designers selecting high‑voltage, low‑gate‑charge MOSFETs for power conversion applications.
| Continuous drain current (Id) at 25 °C | 7.3 A |
|---|---|
| Gate‑source static voltage (Vgs) | +20 V |
| Power dissipation (Pd) at 25 °C | 83 W |
| Operating temperature range | -55 °C to +150 °C |
The device can conduct a continuous drain current of 7.3 A at a case temperature of 25 °C.
The maximum power dissipation is 83 W when the case temperature is 25 °C.
