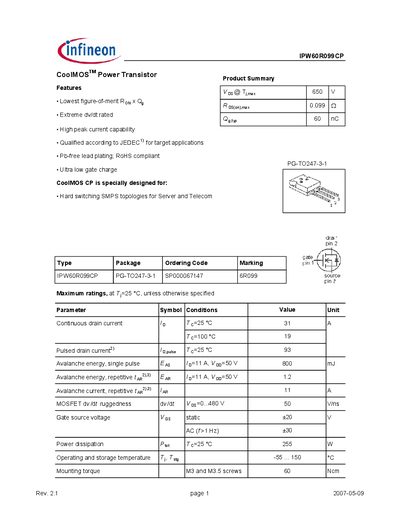

The IPW60R099CP CoolMOSTM power transistor features the lowest figure-of-merit RON x Qg, extreme dv/dt rating, high peak current capability, and is qualified according to JEDEC standards for target applications.
The IPW60RO99CP is a CoolMOS power transistor designed for hard‑switching SMPS topologies in server and telecom applications. It features a low figure‑of‑merit Rds(on)·Qg, ultra‑low gate charge, high peak current capability, and JEDEC qualification.
The document lists maximum ratings, thermal and electrical characteristics, including continuous and pulsed drain currents, on‑state resistance, gate charge, avalanche energy, and power dissipation. Typical output, transfer, and capacitance curves are also provided.
| Gate‑to‑source charge (Qg) | 14 nC |
|---|
The gate‑to‑source charge is 14 nC.
