The BTS 282 Z is a speed sensor with logic level input and analog driving. It has a switching frequency up to 1MHz, overtemperature protection, avalanche rating and high current pinning.

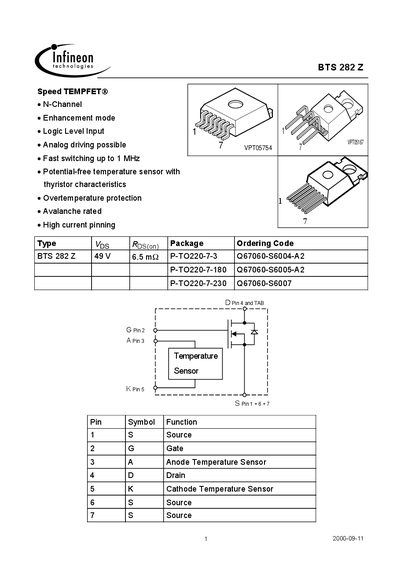

The Infineon BTS 282 Z is a N‑channel enhancement‑mode Speed TEMPFET with logic‑level input, fast switching up to 1 MHz, and built‑in temperature sensing. It offers high current capability, over‑temperature protection, and avalanche rating.
The document provides maximum ratings, thermal and electrical characteristics, dynamic parameters, sensor behavior, and safe operating area data for designers and engineers.
| Drain‑source voltage (VDS) | 49 V |
|---|---|
| Continuous drain current (Id) | 80 A |
| Power dissipation (P_D) | 300 W |
| Gate threshold voltage (VGS(th)) | 1.6 V |
The BTS 282 Z is rated for a maximum drain‑source voltage of 49 V.
The device can handle up to 80 A of continuous drain current.
Yes, it has a potential‑free temperature sensor with thyristor characteristics for over‑temperature protection.
