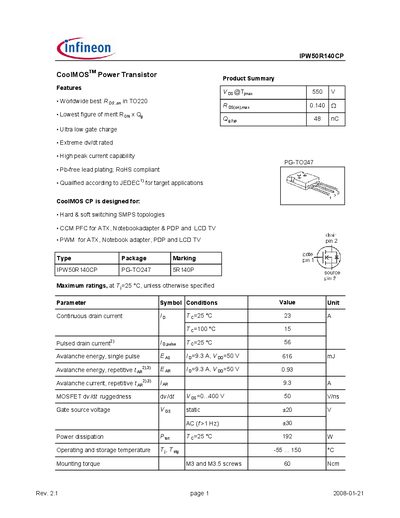

This document describes the features and characteristics of the IPW50R140CP CoolMOSTM power transistor, including worldwide best R DS,on, lowest figure of merit RON x Qg, ultra low gate charge, extreme dv/dt rated, high peak current capability, etc.
This handbook presents the key features and electrical parameters of the Infineon IPW50R140CP CoolMOS power transistor, including its low on‑state resistance, ultra‑low gate charge, and high peak current capability. The document also lists the recommended applications such as hard and soft switching SMPS topologies, CCM PFC for ATX, notebook adapters, PDP and LCD TV.
Detailed sections cover maximum ratings, thermal characteristics, static and dynamic electrical characteristics, gate‑charge behavior, reverse‑diode parameters, and typical output curves. Package information (PG‑TO247) and legal disclaimer are also included.
| Package type | PG‑TO247 |
|---|
It is supplied in a PG‑TO247 package.
