BFR360F is an NPN silicon RF transistor in the BFR series. It is suitable for low-noise amplifiers and oscillators below 3.5 GHz.

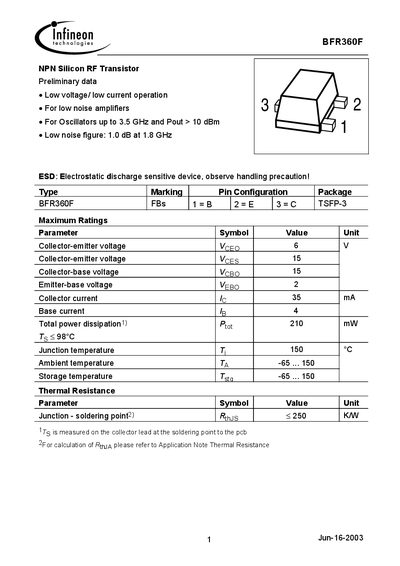

This datasheet describes the Infineon BFR360F NPN silicon RF transistor, targeting low‑voltage, low‑current operation, low‑noise amplifiers and oscillators up to 3.5 GHz. It lists the device’s key specifications such as collector‑emitter voltage, current limits, power dissipation, and noise figure.
The document also includes detailed AC characteristics, transition frequency, SPICE (Gummel‑Poon) model parameters, and performance graphs for power gain, third‑order intercept point, and noise figure across frequency. Package information and handling precautions are provided as well.
