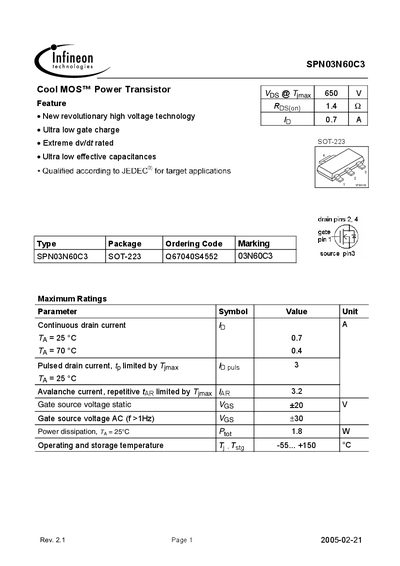

This document describes the features and characteristics of the SPN03N60C3 Cool MOS™ power transistor, including new revolutionary high voltage technology, ultra low gate charge, extreme dv/dt rating, ultra low effective capacitances.
The SPN03N60C3 is a 650 V Cool MOS power transistor offered by Infineon Technologies. It features ultra‑low gate charge, low on‑state resistance, and high voltage capability, suitable for high‑power applications.
The document provides maximum ratings, thermal characteristics, electrical parameters, typical output characteristics, switching behavior, and recommended PCB footprint for the SOT‑223 package.
| Continuous drain current (Id) @ 25 °C | 0.7 A |
|---|---|
| Continuous drain current (Id) @ 70 °C | 0.4 A |
| Gate‑source voltage (static) Vgs | +20 V |
| Gate‑source voltage (AC) Vgs | +30 V |
The maximum continuous drain current is 0.7 A at 25 °C.
