The BAR63 series are low forward resistance (low insertion loss) and low capacitance (high isolation) PIN diodes, designed for high speed switching of RF signals.
The BAR63 series are silicon PIN diodes designed for high‑speed switching of RF signals up to 3 GHz. They feature very low forward resistance and capacitance, making them suitable for applications requiring low insertion loss and high isolation.

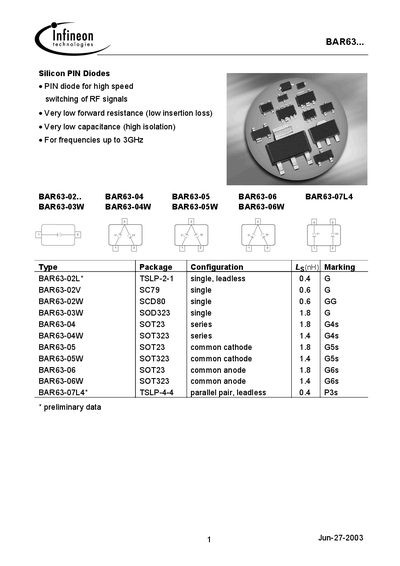

The datasheet lists maximum ratings, DC and AC electrical characteristics, package options, and permissible pulse load limits for the various BAR63 variants (e.g., BAR63‑02L, BAR63‑04W). It also includes thermal resistance data and insertion‑loss/ isolation curves for series configurations.
