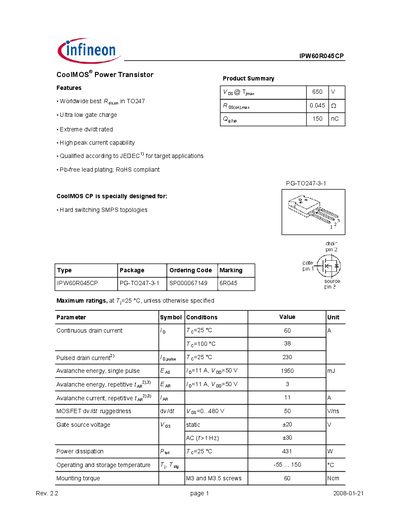

IPW60R045CP CoolMOS® Power Transistor Features: Worldwide best R ds,on in TO247, Ultra low gate charge, Extreme dv/dt rated, High peak current capability, Qualified according to JEDEC1) for target applications, Pb-free lead plating; RoHS compliant. CoolMOS CP is specially designed for: Hard switching SMPS topologies.
The IPW60RO45CP is a CoolMOS® power transistor designed for hard‑switching SMPS topologies. It offers ultra‑low gate charge, high peak current capability, and JEDEC qualification, while being Pb‑free and RoHS compliant.
The document lists maximum ratings, thermal resistance, static and dynamic electrical characteristics, gate‑charge data, avalanche energy, safe operating area, and mechanical outline dimensions, giving designers the data needed for reliable integration.
| Continuous Drain Current (Id) | 60 A |
|---|---|
| Maximum Power Dissipation (Pd) | 431 W |
The device can conduct a continuous drain current of 60 A at 25 °C.
