BSP135 SIPMOS® is a N-channel, depletion mode, dv/dt rated small-signal transistor with a maximum rating of T j=25°C, unless otherwise specified.

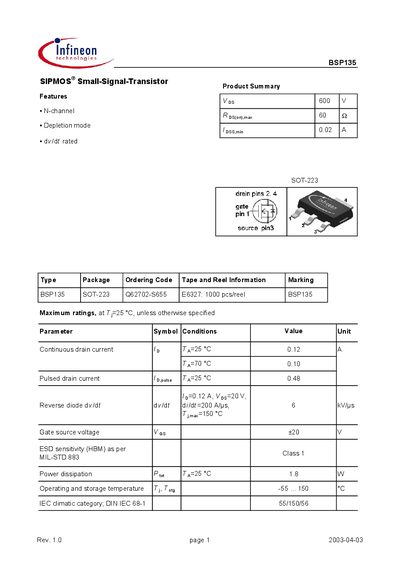

The BSP135 is an N‑channel depletion‑mode small‑signal transistor offered by Infineon in a SOT‑223 package. The datasheet lists its electrical, thermal and dynamic characteristics, as well as maximum ratings and safe‑operating‑area information.
Key parameters include a continuous drain current of 0.12 A, a pulsed drain current of 0.48 A, a drain‑source breakdown voltage of 600 V, a maximum power dissipation of 1.8 W at 25 °C, and an operating temperature range from –55 °C to 150 °C. Package dimensions and footprint details are also provided.
| Continuous drain current (Id) | 0.12 A |
|---|---|
| Pulsed drain current (Id,pulse) | 0.48 A |
| Gate‑source voltage (Vgs max) | +20 V |
| Power dissipation (Pd) at 25 °C | 1.8 W |
| Package type | SOT‑223 |
The BSP135 can conduct a continuous drain current of 0.12 A at 25 °C.
The device is supplied in a SOT‑223 surface‑mount package.
The maximum power dissipation is 1.8 W at a case temperature of 25 °C.
