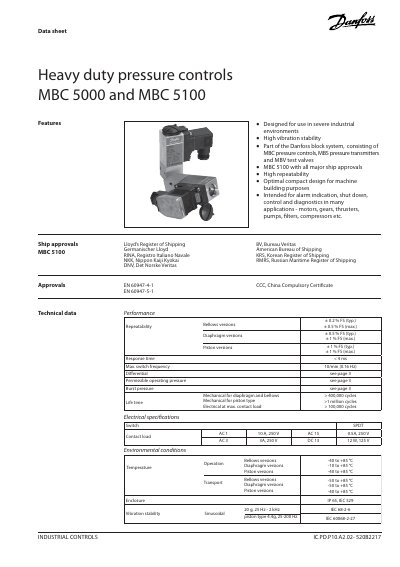

This document describes the features and characteristics of the MBC 5000 and MBC 5100 heavy-duty pressure controls. They are designed for use in severe industrial environments and have high vibration stability and repeatability. These products are intended for use in machine building, motors, gears, thrusters, pumps, filters, compressors, and more.
The Danfoss MBC 5000 and MBC 5100 are heavy‑duty pressure controllers designed for severe industrial environments. They offer high vibration stability, repeatable performance, and compact design for machine‑building applications such as motors, pumps and compressors.
The datasheet provides electrical specifications, mechanical characteristics, environmental limits, ship‑approval certifications and ordering options for both low‑pressure and high‑pressure versions, including bellows, diaphragm and piston types. This manual is written in Chinese.
| Switch type | SPDT |
|---|---|
| Contact load (AC) | 1 × 10 A, 250 V AC |
| Enclosure IP rating | IP65 |
| Operating temperature range | -40 °C to +85 °C |
| Vibration stability | Sinusoidal 20 g, 25 Hz – 2 kHz |
| Response time | < 4 ms |
| Maximum switch frequency | 10/min (0.16 Hz) |
The response time is less than 4 ms.
The maximum switch frequency is 10 per minute (0.16 Hz).
MBC 5100 is approved by Lloyd’s Register of Shipping, Germanischer Lloyd, RINA, DNV, Bureau Veritas, ABS, Korean Register of Shipping and Russian Maritime Register of Shipping.
The enclosure has an IP65 rating.
