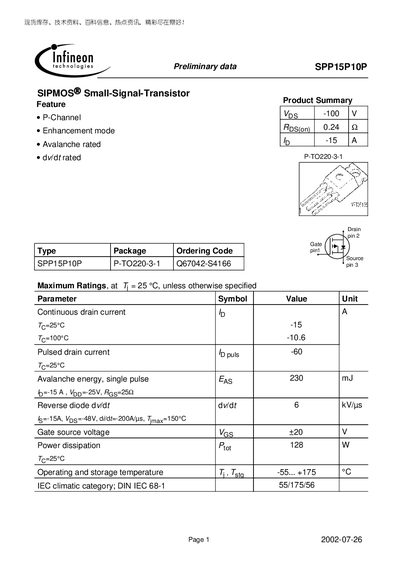

This document describes the features and characteristics of the SPP15P10P SIPMOS small-signal transistor, including P-Channel, enhancement mode, avalanche rated, and dv/dt rated.
The SPP15P10P is a P‑channel SIPMOS small‑signal transistor offered by Infineon Technologies. It is intended for use in applications requiring high voltage handling, low on‑resistance and fast switching performance.
The document lists maximum ratings, thermal characteristics, dynamic parameters, and characteristic curves such as output, transfer and on‑state resistance. Key specifications include drain current, avalanche energy, power dissipation and temperature range, with detailed graphs for design reference.
| Pulsed drain current (Id,puls) | -60 A |
|---|---|
| Avalanche energy (single pulse) | 230 mJ |
| Power dissipation (P_R) | 128 W |
The device is rated for an avalanche energy of 230 mJ per single pulse.
