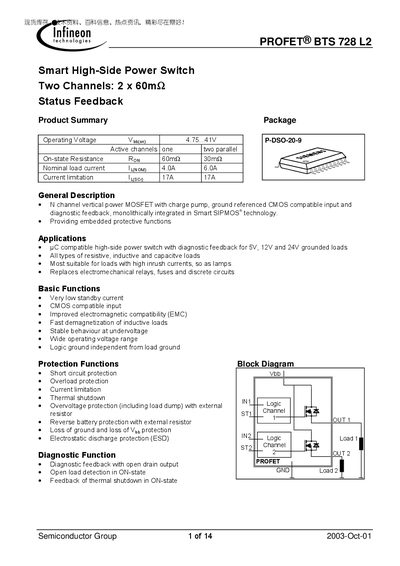

PROFET BTS 728 L2 is a high-performance, low-power smart high-side power switch with diagnostic feedback function from Siemens. It can be used for 5V, 12V and 24V loads.
The BTS 728 L2 is a dual‑channel smart high‑side power switch featuring N‑channel vertical MOSFETs, charge‑pump architecture, and diagnostic feedback. It supports operating voltages from 4.75 V to 41 V and can drive loads up to 6 A when channels are paralleled.
The device includes built‑in protection such as short‑circuit, overload, current‑limit, over‑voltage, reverse‑battery and ESD protection, and provides status signals for open‑load and thermal shutdown detection. Pin definitions, electrical characteristics, and thermal data are detailed for designers.
| On‑state resistance (Ron) | 60 mΩ typical |
|---|---|
| Nominal load current | 4.0 A (single channel) / 6.0 A (two parallel channels) |
| Current limitation | 17 A |
It has two independent high‑side channels.
Each channel has an on‑state resistance of about 60 mΩ.
