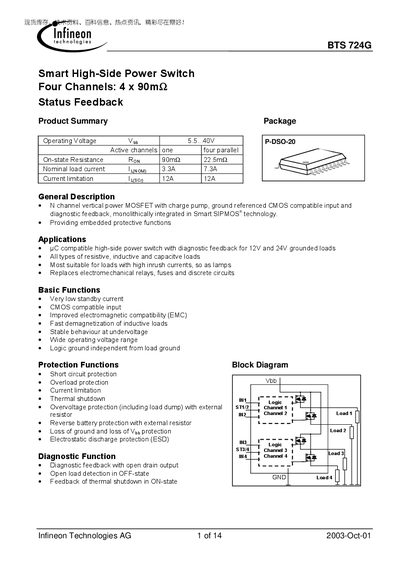

BTS 724G is a four-channel high-side power switch manufactured by Infineon with 4 x 90mΩ status feedback function. It is suitable for 12V and 24V grounded loads and can replace electromechanical relays, fuses and discrete circuits.
The BTS 724G is a smart high‑side power switch with four independent channels, each capable of handling up to 3.3 A (single) or 7.3 A when four channels are paralleled. It integrates charge‑pump MOSFETs, diagnostic feedback, and a range of protection functions such as short‑circuit, overload, over‑voltage, reverse‑battery, and ESD protection.
The device operates from 5.5 V to 40 V, features very low standby current, CMOS‑compatible inputs, and fast demagnetization of inductive loads. Pin definitions, maximum ratings, thermal characteristics, and detailed electrical parameters are provided for design integration.
| On‑state resistance (Ron) typical | 90 mΩ |
|---|---|
| Nominal load current (single channel) | 3.3 A |
| Standby current typical | 0.3 µA |
| Maximum short‑circuit current per channel | 12 A |
| Maximum power dissipation (all channels active, 85 °C) | 1.9 W |
| ESD protection (Human Body Model) | 1.0 kV |
It provides four independent high‑side channels.
The typical on‑state resistance is 90 mΩ per channel.
