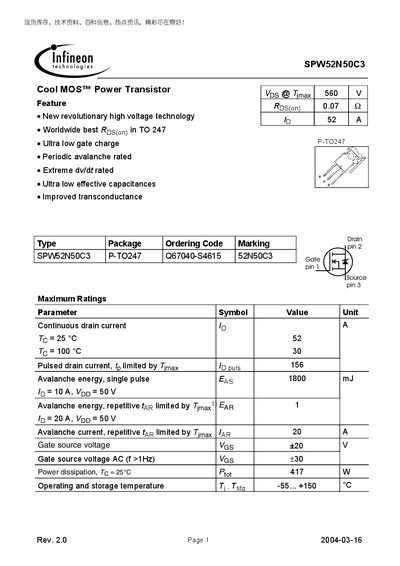

This document is about SPW52N50C3 technical information. It mainly introduces the features and characteristics of the product, including RDS(on), ID, Avalanche energy, EAS, Avalanche current, IAR, Gate source voltage, VGS, Power dissipation, Tj, Tstg, dv/dt, RthJC, RthJA, Tsold.
The SPW52N50C3 is Infineon's Cool MOS™ power transistor featuring ultra‑low gate charge, low capacitances, and high voltage capability. It is offered in a P‑TO‑247 package and is intended for high‑power applications requiring fast switching and robust avalanche performance.
The document lists detailed maximum ratings, thermal characteristics, and a full set of electrical parameters such as breakdown voltage, drain current limits, capacitances, and gate charge. These data help designers evaluate the device for use in power converters, motor drives, and other high‑voltage, high‑current circuits.
| Pulsed drain current (Tmax limited) | 156 A |
|---|---|
| Operating temperature range | -55 °C to +150 °C |
| Package type | P‑TO‑247 |
The transistor is rated for operation from –55 °C up to +150 °C.
It is supplied in a P‑TO‑247 (P‑TO‑247‑3‑1) package.
