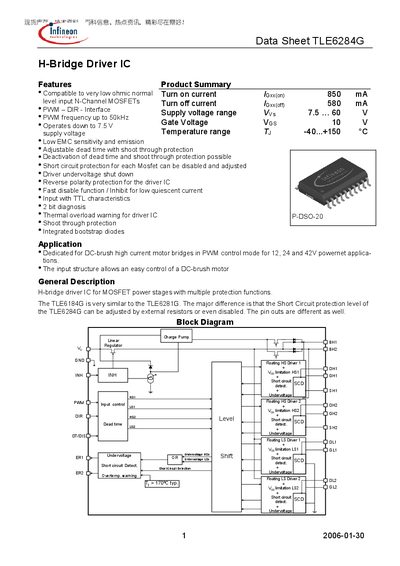

This datasheet provides detailed information on the TLE6284G driver IC, including features, characteristics, and applications.
The TLE6284G is an H‑bridge driver IC designed for MOSFET power stages in DC‑brush motor applications. It offers adjustable dead‑time, shoot‑through protection, short‑circuit detection, undervoltage shutdown, and reverse‑polarity protection. The device operates from 7.5 V to 60 V and supports PWM frequencies up to 50 kHz.
The datasheet provides detailed electrical characteristics, maximum ratings, pin descriptions, timing diagrams, and package information (P‑DSO‑20). It also includes application notes on resistor networks for current‑limit adjustment and default input pin states for reliable operation.
| PWM frequency | up to 50 kHz |
|---|---|
| Operating temperature range | -40 °C to 150 °C |
| Turn‑on current (high side) | 850 mA |
| Turn‑off current (high side) | 580 mA |
It supports PWM frequencies up to 50 kHz.
The IC is rated for operation from –40 °C to +150 °C.
It provides two open‑collector diagnosis pins (ER1 and ER2).
