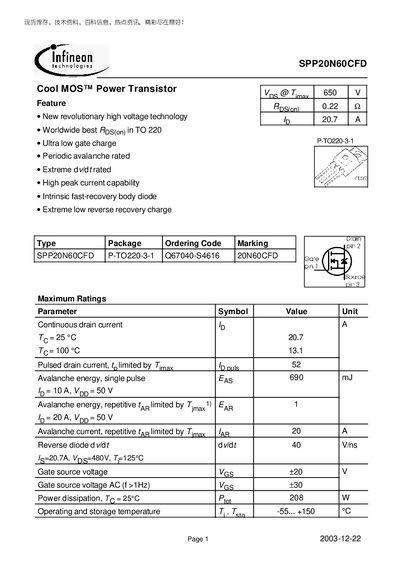

SPP20N60CFD Cool MOS™ Power Transistor, rated maximum voltage 650V, on-resistance 0.22 ohms, continuous current 20.7 amperes, pulse current 52 amperes, reverse recovery charge is extremely low.
This datasheet describes the Infineon SPP20N60CFD Cool MOS power transistor, covering its maximum ratings, electrical characteristics, and thermal performance. Key parameters such as breakdown voltage, current limits, and power dissipation are listed along with typical characteristic curves.
Additional sections detail gate charge behavior, body‑diode forward characteristics, and package information. Safety notices and contact details for Infineon Technologies are included at the end of the document.
| Thermal resistance, junction‑to‑case (RJC) | 0.6 K/W |
|---|
The junction‑to‑case thermal resistance is 0.6 K/W.
