The Toshiba B‑SX4T barcode printer offers high‑speed, high‑quality printing with RFID support and robust industrial features.
The Toshiba B‑SX4T is an industrial‑grade barcode printer featuring a 32‑bit RISC SH‑3 88 MHz processor, up to 16 MB DRAM and 4 MB flash memory, and a unique suspended‑type print head delivering 203 dpi resolution. It supports a wide range of 1‑D and 2‑D symbologies and includes optional RFID capabilities for both HF (13.56 MHz) and UHF (869.5 MHz) tags.

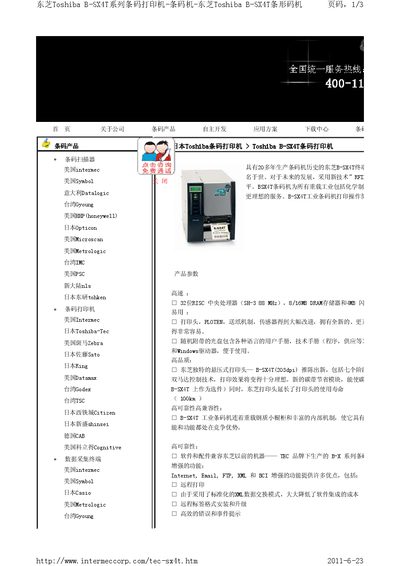

Designed for heavy‑duty use, the printer provides multiple interfaces such as RS‑232C, USB v1.1, 10/100 Ethernet, parallel, and PCMCIA slots. Its dimensions are 291 mm W × 460 mm L × 308 mm H, weighing 18 kg, and it offers optional accessories like a rotary cutter, peel‑off unit, and embedded network card. This manual is written in Chinese.
| Processor | SH‑3 88 MHz 32‑bit RISC |
|---|---|
| Memory | 8/16 MB DRAM, 4 MB Flash |
| Print resolution | 203 dpi (8 dots/mm) |
| Print width | 104 mm (max) |
| Print length | 1498 mm (max) |
| Print speed | 254 mm/s (10 ips) |
| Interfaces | RS‑232C, USB v1.1, 10/100 Ethernet, parallel, PCMCIA, I/O expansion |
| Dimensions (W×L×H) | 291 mm × 460 mm × 308 mm |
| Weight | 18 kg |
| Supported 1‑D barcodes | UPC/EAN/JAN, Code39, Code93, Code128, NW7, MSI, Industrial2of5, ITF, Postnet, RM4SCC, KIX |
| Supported 2‑D codes | Datamatrix, PDF 417, Maxicode, QR code, Micro PDF 417 |
The printer provides RS‑232C, USB v1.1, 10/100 Ethernet, parallel, PCMCIA slots and optional I/O expansion.
It prints at 203 dpi, which equals 8 dots per millimetre.
The unit measures 291 mm W × 460 mm L × 308 mm H and weighs 18 kg.
