TC7SH126FS is a digital integrated circuit produced by Toshiba. It has the characteristics of high speed, low power consumption, high noise immunity and wide operating voltage range.
The TC7SH126FS is a CMOS digital integrated circuit that provides a 3‑state bus buffer function. It offers high‑speed propagation (typ. 3.8 ns) and low power consumption (max 2 µA) while tolerating a supply voltage from 2.0 V to 5.5 V.

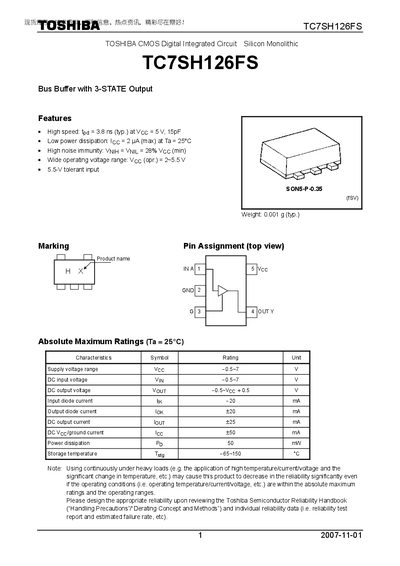

The device is intended for general electronics applications such as computers, office equipment, measuring instruments and industrial robotics. It includes specifications for absolute maximum ratings, electrical and AC characteristics, package dimensions, and usage restrictions to guide reliable design.
| Propagation delay (typ.) | 3.8 ns |
|---|---|
| Operating temperature range | -40 °C ~ 85 °C |
| Package weight (typ.) | 0.001 g |
The typical propagation delay is 3.8 ns.
Maximum power dissipation is 50 mW.
It can operate from –40 °C to +85 °C.
