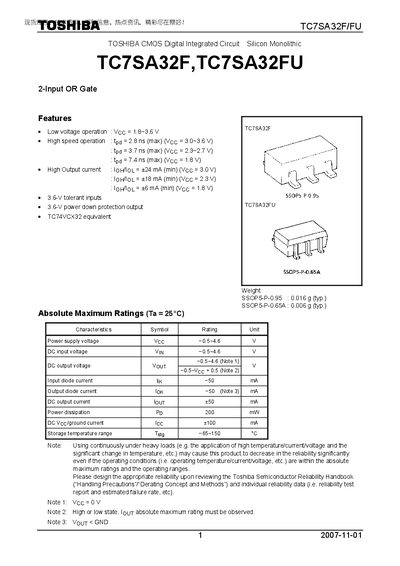

TC7SA32F/FU is a CMOS digital integrated circuit with features of low voltage operation, high speed operation, and high output current.
The Toshiba TC7SA32F/FU is a CMOS digital integrated circuit featuring a 2‑input OR gate with low‑voltage and high‑speed operation. It provides 3.6‑V tolerant inputs, power‑down protection, and high output current capability.
The document includes detailed electrical characteristics, package dimensions, and usage restrictions, covering operating ranges from –40 °C to 85 °C and supply voltages from 1.8 V to 3.6 V. It is intended for general electronics applications such as computers, office equipment, and industrial robotics.
| Package type (TC7SA32F) | SSOP5‑P‑0.95 |
|---|---|
| Typical weight (TC7SA32F) | 0.016 g |
The typical weight is 0.016 g.
The device is specified for –40 °C to 85 °C.
