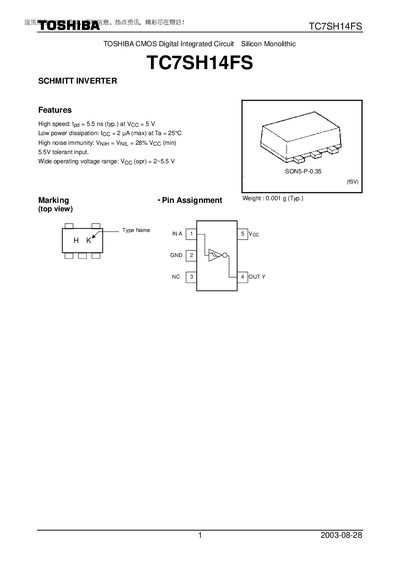

The document describes the features of TC7SH14FS, a TOSHIBA CMOS digital integrated circuit, including high speed, low power dissipation, and high noise immunity. The product has a wide operating voltage range and 5.5V input tolerance.
The TC7SH14FS is a CMOS digital integrated circuit featuring a Schmitt trigger inverter. It offers high speed (typical propagation delay 5.5 ns at VCC = 5 V), low power dissipation (2 pA ICC), and wide operating voltage range (2 V to 5.5 V). The device is tolerant to 5.5 V inputs and provides high noise immunity.
The datasheet lists maximum ratings, recommended operating conditions, DC and AC electrical characteristics, and package dimensions. It also includes handling restrictions and usage guidelines for safety‑critical applications.
| Typical propagation delay (tpd) | 5.5 ns |
|---|---|
| Power dissipation (Pp) | 50 mW |
| Supply voltage range (Voc) | -0.5 V to 7.0 V |
| Operating temperature range (Topr) | -40 °C to 85 °C |
| Input leakage current (Icc) | 2 pA (max) at 25 °C |
| Package weight | 0.001 g (typ.) |
The typical propagation delay is 5.5 ns at a supply voltage of 5 V.
The device can dissipate up to 50 mW.
It operates from –40 °C to 85 °C.
The typical weight of the package is 0.001 g.
