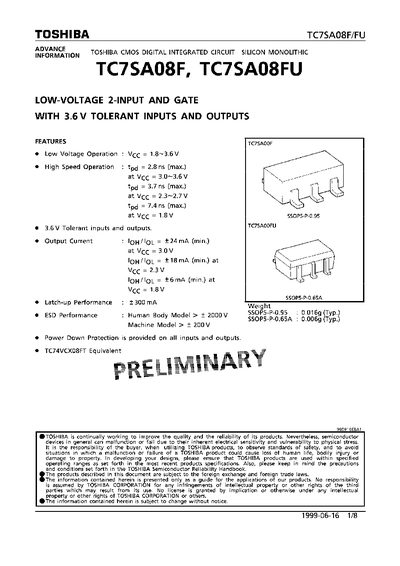

The TC7SA08F/FU is a CMOS digital integrated circuit that implements a low‑voltage 2‑input AND function. It features 3.6 V tolerant inputs and outputs and is offered in compact SSOP5 packages.
The datasheet provides maximum ratings, recommended operating ranges, electrical and capacitive characteristics, pin assignments, truth tables, and package dimensions, allowing designers to integrate the device into low‑power logic circuits.
| Supply Voltage (Vec) | -0.5 to 4.6 V |
|---|---|
| Recommended Supply Voltage | 1.2 to 3.6 V |
| Input High Level (VIH) | 2.7 to 3.6 V |
| Input Low Level (VIL) | 0.8 V (max) |
| Output Current (loH/loL) | 24 mA (min) at Vcc=3.0 V |
| Power Dissipation (PD) | 200 mW |
| Operating Temperature | -40 °C to 85 °C |
The recommended supply voltage is 1.2 V to 3.6 V.
It can source up to 24 mA (minimum guaranteed) at Vcc = 3.0 V.
It operates from –40 °C to +85 °C.
It is offered in SSOP5‑P‑0.95 (typical weight 0.016 g) and SSOP5‑P‑0.65A (typical weight 0.006 g) packages.
