The TC7SH14FE is a CMOS digital integrated circuit produced by Toshiba. It is a Schmitt inverter. It has the characteristics of super-high speed, low power consumption, 5.5V tolerant input and wide operating voltage range.
The TC7SH14FE is a CMOS Schmitt‑inverter integrated circuit offering super‑high speed operation (typical propagation delay 5.5 ns at VCC = 5 V) and low power dissipation (Icc ≤ 2 µA). It operates over a wide supply range (2 V ~ 5.5 V) and tolerates inputs up to 5.5 V.

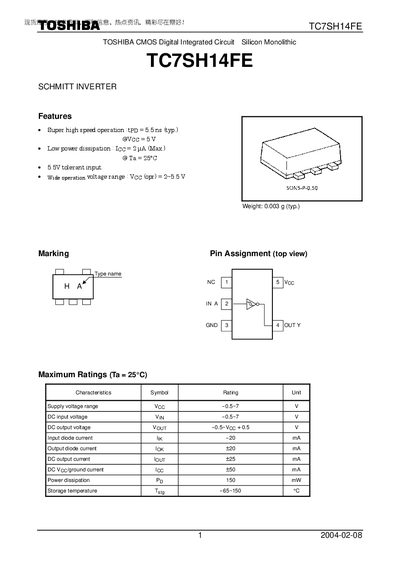

The document lists detailed electrical characteristics, AC performance, package dimensions (SONS‑P‑0.50, weight 0.003 g), maximum ratings, and recommended operating conditions (‑40 °C ~ 85 °C). It also includes usage restrictions and safety notes for designers.
| Typical propagation delay (tpp) | 5.5 ns |
|---|---|
| Supply voltage range | 2 V ~ 5.5 V |
| Power dissipation (Pp) | 150 mW |
| Package type | SONS‑P‑0.50 |
| Typical weight | 0.003 g |
| Operating temperature range | -40 °C ~ 85 °C |
The typical propagation delay (tpp) is 5.5 ns at VCC = 5 V.
It can operate with a supply voltage from 2 V to 5.5 V.
The device is rated for a maximum power dissipation of 150 mW.
