TC7SH14FE is a CMOS digital integrated circuit manufactured by Toshiba. It has the characteristics of super high speed, low power consumption, 5.5V tolerant input and wide operating voltage range.
The TC7SH14FE is a CMOS Schmitt‑trigger inverter from Toshiba, offering super‑high speed operation (typical propagation delay 5.5 ns) and low power dissipation. It is intended for general electronics applications such as computers, office equipment, and industrial robotics.

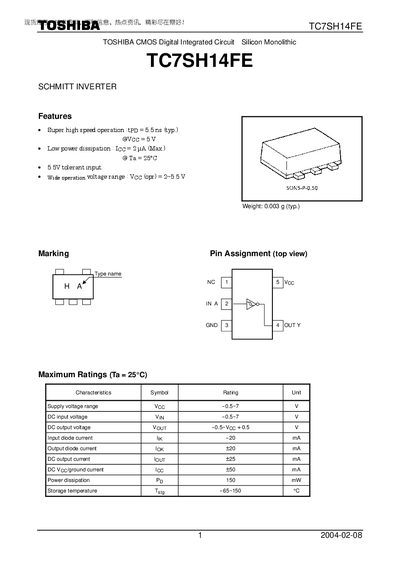

The document lists detailed electrical characteristics, maximum ratings, recommended operating conditions, package dimensions (SONS‑P‑0.50), and usage restrictions. Key parameters include a supply voltage range of 2 V to 5.5 V, power dissipation up to 150 mW, and typical input leakage of 0.1 pA.
| Supply voltage range | 2 V ~ 5.5 V |
|---|---|
| Typical propagation delay (tpp) | 5.5 ns |
| Power dissipation (Pp) | 150 mW |
| Package weight | 0.003 g (typ.) |
The typical propagation delay is 5.5 ns.
The recommended supply voltage range is 2 V to 5.5 V.
The device can dissipate up to 150 mW.
