TC7SA04F/FU is a CMOS digital integrated circuit produced by Toshiba. Its working voltage range is 1.8~3.6V, and it has the characteristics of low voltage, high speed, large output current, high anti-static performance and power down protection.
The TC7SA04F/FU is a CMOS digital integrated circuit with low‑voltage operation (1.8 V – 3.6 V) and high‑speed switching. It offers high output currents up to 24 mA and features latch‑up and ESD protection.

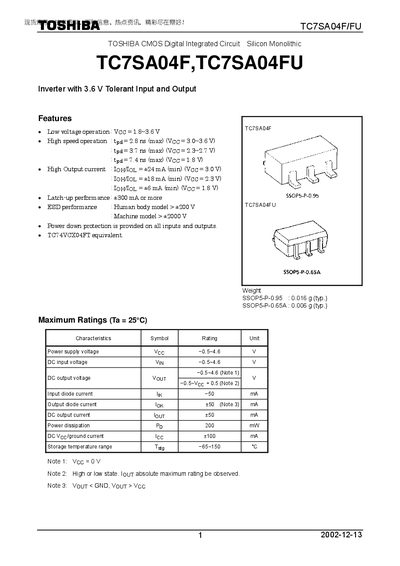

The document lists detailed DC and AC characteristics, dynamic switching and capacitive parameters, as well as package dimensions for SSOP5‑P‑0.95 and SSOP5‑P‑0.65A versions. It also includes usage restrictions, stating the device is not intended for safety‑critical or high‑reliability applications.
| Power supply voltage (Voc) | -0.5~4.6 V |
|---|---|
| Input voltage (VIN) | -0.5~4.6 V |
| High output current (IOH/IOL) | +24 mA (min) at Vcc=3.0 V |
| Low output current (IOH/IOL) | +18 mA (min) at Voc=2.3 V |
| Propagation delay (tpd) | 2.8 ns (max) at Voc=3.0~3.6 V |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
| Package dimensions (SSOP5‑P‑0.95) | mm (unit) |
The high output current is up to +24 mA (min) at Vcc = 3.0 V.
The device is not intended for safety‑critical or high‑reliability applications such as medical, aerospace, or traffic‑signal equipment.
