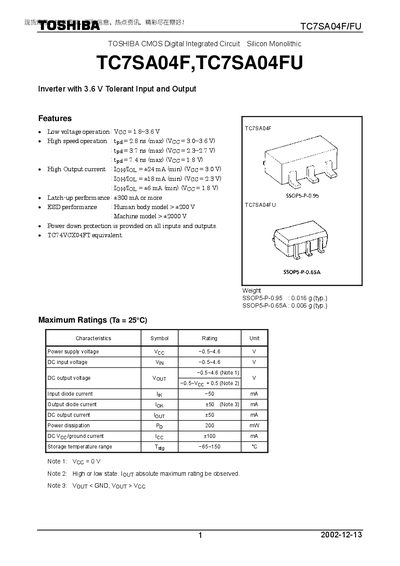

This document introduces the stock inventory, technical information, encyclopedia information, and hot news of Dinghao. It specifically describes the features and characteristics of the TC7SA04F/FU model of TOSHIBA CMOS digital integrated circuit, including low voltage operation, high speed operation, high output current, and protection function.
The TC7SA04F/FU is a CMOS digital integrated circuit with low‑voltage operation (1.8 ~ 3.6 V) and high‑speed switching. It offers a typical propagation delay of 2.8 ns at 3.0 ~ 3.6 V and output currents up to 24 mA.
The document provides detailed electrical, AC, and dynamic switching characteristics, package dimensions for SSOP5‑P‑0.95 and SSOP5‑P‑0.65A, and usage restrictions for safety‑critical applications.
| Operating voltage range | 1.8~3.6 V |
|---|---|
| Propagation delay (typical) | 2.8 ns (max) at Voc 3.0~3.6 V |
| High output current | +24 mA (min) at Vcc 3.0 V |
| Power dissipation | 200 mW |
| Storage temperature range | -65~150 °C |
| Package type | SSOP5-P-0.95 |
| Package weight (typical) | 0.016 g |
The maximum power dissipation is 200 mW.
