TC7SA32F/FU is a low voltage, high speed, high output current 2-input OR gate produced by Toshiba
The TC7SA32F/FU is a Toshiba CMOS digital integrated circuit that implements a 2‑input OR gate. It operates over a wide supply voltage range (1.8 V – 3.6 V), offers high‑speed switching (typical propagation delay 2.8 ns) and provides up to 24 mA output current.

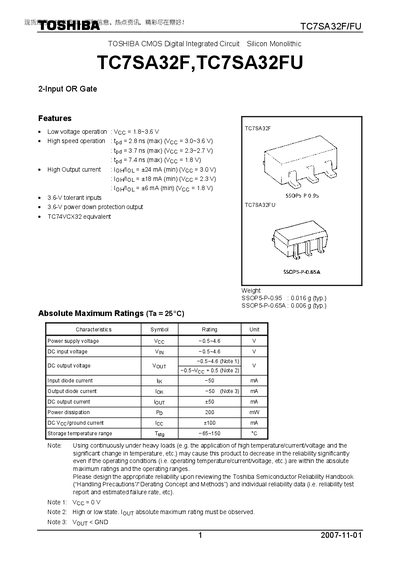

The document lists electrical characteristics, AC and dynamic switching parameters, package dimensions for SSOP5‑P‑0.95 and SSOP5‑P‑0.65A, and usage restrictions. Designers are advised to follow Toshiba’s reliability guidelines and to avoid unintended applications such as safety‑critical or aerospace equipment.
| Supply voltage (Vec) | -0.5 ~ 4.6 V |
|---|---|
| Input voltage (VIN) | -0.5 ~ 4.6 V |
| Operating temperature range | -40 °C ~ 85 °C |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
| Package weight (SSOP5‑P‑0.65A) | 0.006 g (typ.) |
It operates from 1.8 V to 3.6 V (typical) and is tolerant up to 4.6 V absolute maximum.
The IC is specified for temperatures from –40 °C to +85 °C.
