The TC7SA05F/FU is a low voltage operational amplifier from Toshiba that has a power supply voltage range of 1.8~3.6V and features high speed, high output current and 3.6V tolerance input voltage.

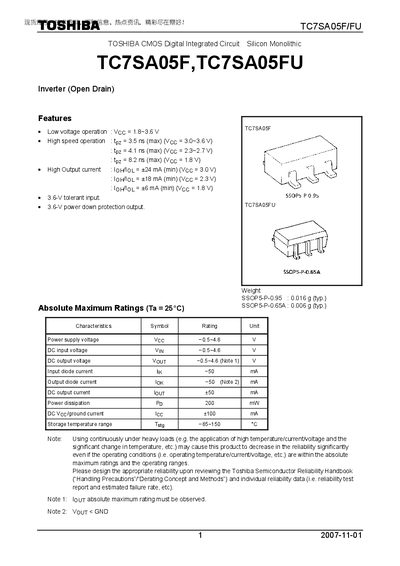

The TC7SA05F/TC7SA05FU is a CMOS digital integrated circuit featuring an open‑drain inverter, low‑voltage operation and high‑speed switching. It supports a supply voltage range of 1.8 V to 3.6 V and delivers up to 24 mA output current.
The document lists detailed electrical parameters, AC and DC characteristics, package dimensions for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A variants, and important handling and usage restrictions for reliable system design.
| Supply voltage (Vcc) range | 1.8 V ~ 3.6 V |
|---|---|
| Propagation delay (tpz) max | 3.5 ns |
| Storage temperature range | -65 °C ~ 150 °C |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
| Package size (SSOP5‑P‑0.95) | mm (unit specified) |
| Input capacitance | 4 pF |
The device operates with a Vcc between 1.8 V and 3.6 V.
The SSOP5‑P‑0.95 package is measured in millimetres and weighs about 0.016 g typical.
Yes, the component must not be used in safety‑critical or high‑reliability equipment such as medical, aerospace, or traffic control devices.
