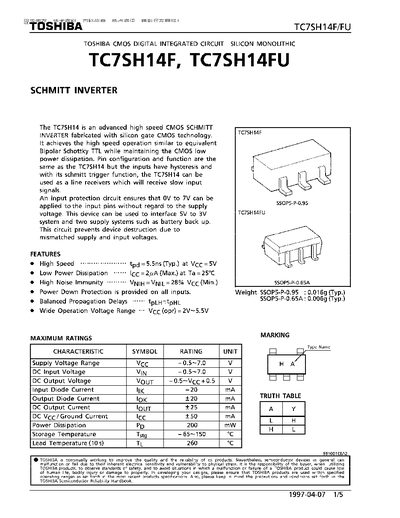

The TC7SH14F/FU is an advanced high‑speed CMOS Schmitt inverter fabricated with silicon‑gate CMOS technology. It offers propagation delays as low as 5.5 ns (typical at VCC = 5 V) while maintaining low power dissipation, making it suitable for line‑receiver applications and interfacing between 5 V and 3 V systems.
Key features include input protection that tolerates up to 7 V on the pins, power‑down protection on all inputs, balanced propagation delays, and operation over a wide voltage range of 2 V to 5.5 V. The device is supplied in SSOP5 packages (0.95 mm and 0.65 mm pitch) with typical weights of 0.016 g and 0.006 g respectively.
| Supply current (Ic) | 2 µA (max) at Ta = 25 °C |
|---|---|
| Noise immunity (VNIH/VNIL) | 28 % VCC (min) |
| Operating voltage range (VCC) | 2.0 V ~ 5.5 V |
| Supply voltage rating | -0.5 V ~ 7.0 V |
| Input voltage rating | 0 V ~ 5.5 V |
| Output voltage rating | 0 V ~ VCC |
| Operating temperature range | -40 °C ~ 85 °C |
| Storage temperature range | -65 °C ~ 150 °C |
| Typical package weight (SSOP5‑P‑0.95) | 0.016 g |
| Typical package weight (SSOP5‑P‑0.65) | 0.006 g |
It operates from 2.0 V to 5.5 V, with absolute ratings of –0.5 V to 7.0 V.
Yes, it includes power‑down protection on all inputs and can tolerate up to 7 V on the input pins.
The device operates from –40 °C to 85 °C.
