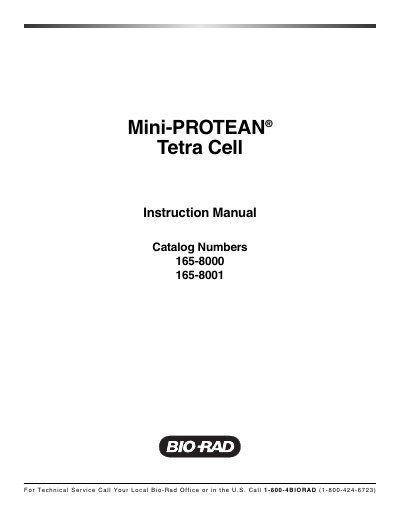

This document is an instruction manual for the Mini-PROTEAN® Tetra Cell. It provides information about the components, specifications, safety precautions, as well as setup, operation, and maintenance instructions.
The Mini‑PROTEAN Tetra Cell is a compact electrophoresis system that can run one to four hand‑cast or Ready‑Gel® precast gels. It includes a casting stand, spacer plates of various thicknesses, and interchangeable electrode modules for blotting and 2‑D electrophoresis.
This manual covers general information, detailed setup and basic operation, separation theory, reagent preparation, safety guidelines, maintenance procedures, troubleshooting, product accessories, and warranty details. It also lists catalog numbers for optional parts and accessories.
| Maximum Sample Volume per Well (10‑well, 1.0 mm) | 44 µl |
|---|---|
| Overall Size | 16 cm (L) × 12 cm (W) × 18 cm (H) |
| Voltage Limit | 600 V DC |
| Maximum Power Limit | 30 W |
| Maximum Ambient Temperature | 40 °C |
| Shipping Weight | 2.0 kg |
| Chemical Compatibility | Not compatible with acetone or ethanol |
The instrument is limited to a maximum of 600 V DC.
The 10‑well version has a well width of 5.08 mm and a maximum sample volume of 44 µl per well.
The lid assembly contains a safety interlock that breaks the current when the lid is removed.
The cell is warranted for one year against defects in materials and workmanship.
