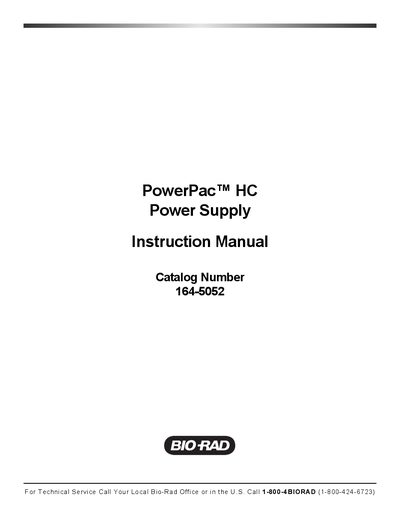

This manual introduces how to use PowerPac HC power supply, including introducing product overview, control features, setup and operation, maintenance and troubleshooting.
The PowerPac HC is a laboratory power supply that provides constant voltage, current or power for electrophoresis applications. It features programmable output, automatic crossover, and safety monitoring such as overload and fan failure detection.
The manual includes safety guidelines, unpacking instructions, detailed control key functions, step‑by‑step setup and run programming, maintenance procedures, specifications, and warranty information.
| Output Voltage Range | 5 V – 250 V (1 V steps) |
|---|---|
| Output Current Range | 0.01 A – 3.00 A (0.01 A steps) |
| Output Power Range | 0.05 W – 300 W (1 W steps) |
| Input Power | 100‑120 V / 220‑240 V AC (auto‑switching) |
| Required Clearance | Minimum 6 cm around the unit |
The PowerPac HC is warranted for one year against defects in materials and workmanship.
At least 6 cm of clearance should be maintained around the unit to ensure adequate cooling.
Connect the color‑coordinated power leads perpendicular to the case, as shown in Figure 5.
Press the start/pause key after setting the desired parameters to begin the run.
