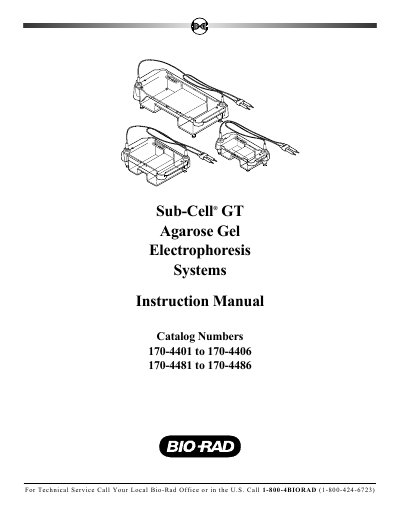

This manual explains how to use the Sub-Cell GT Agarose Gel Electrophoresis Systems.
The Sub‑Cell GT series (basic Sub‑Cell GT, Wide Mini‑Sub® GT, and Mini‑Sub GT) is a submerged agarose gel electrophoresis system designed for reliable separation of DNA, RNA and PCR products. The system uses thick acrylic buffer chambers, safety lids and replaceable electrode cassettes to ensure safe, repeatable runs.
This manual covers general information, safety precautions, system components, detailed operating instructions (gel preparation, casting, electrophoresis, staining), reagent preparation, care and maintenance, troubleshooting, and product information including specifications and accessories. It also includes warranty details and reference material.
| Maximum voltage limit | 200 VDC |
|---|---|
| Maximum power limit | 40 Watts |
| Maximum buffer temperature | 40 °C |
| GT base footprint (L × W × H) | 42 × 19.5 × 10 cm |
| GT base buffer volume | 1,500–2,000 ml |
| GT base gel size | 15 × 15 cm |
| Recommended power supply | PowerPac 300 |
The manual recommends using the Bio‑Rad PowerPac 300 power supply, which includes safety features such as no‑load and overload protection.
Current to the cell is supplied through the lid assembly and is broken automatically when the safety lid is removed.
