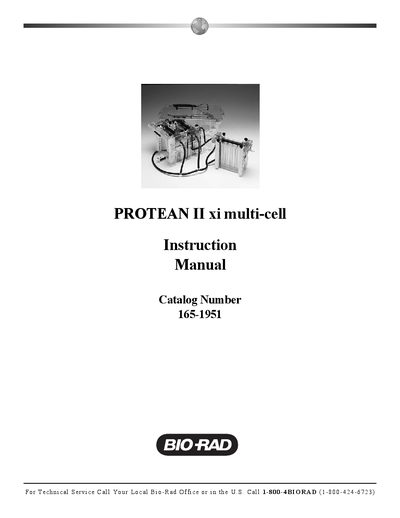

PROTEAN II xi multi-cell Instruction Manual provides operating instructions for using the PROTEAN II xi multi-cell, including assembly, disassembly and maintenance.
The PROTEAN II xi multi‑cell is a laboratory electrophoresis instrument designed for high‑resolution two‑dimensional protein separation. It can be converted for 2‑D electrophoresis using an optional conversion kit and supports both SDS‑PAGE and IEF first‑dimension tube gels.
This manual covers general information, safety requirements, detailed specifications, description of major parts, step‑by‑step 2‑D protocols, troubleshooting, and a list of required chemicals and power supplies. It also includes warranty details and contact information for technical service.
| Maximum voltage limit | 1,000 VDC |
|---|---|
| Maximum ambient temperature | 50 °C |
| Maximum power limit | 80 W |
| Cooling core maximum flow rate | 2 L/min |
| Shipping weight | 18 kg |
| Overall dimensions | 60 × 36 × 30 cm |
| Gel slab size | 16 × 20 cm |
| Glass plate inner size | 20 × 20 cm |
The instrument’s voltage limit is 1,000 VDC.
Current to the cell is broken when the lid is removed, providing a safety interlock.
The instrument may be used up to an ambient temperature of 50 °C.
