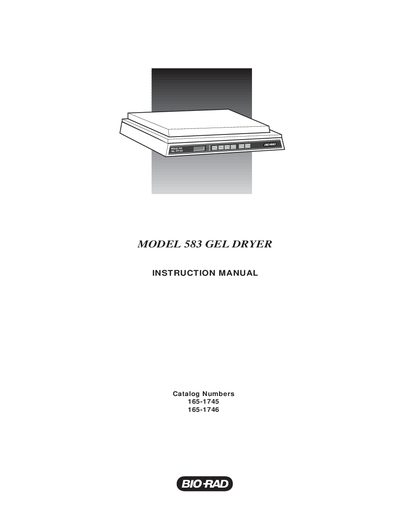

Introduces the features and usage of the 583 Gel Dryer
This manual introduces the Model 583 Gel Dryer, a laboratory instrument that dries sequencing and protein gels using three pre‑programmed drying cycles and a floating heating element. It details the physical description, control panel functions, and the floating heater that provides even heating across the gel.
The guide covers electrical and vacuum set‑up, step‑by‑step operation, routine maintenance, troubleshooting, vacuum source options, technical specifications, and warranty ordering information. Safety warnings and compliance with EN 61010‑1 and CE standards are also included.
| Operating Voltage | 220/240 V AC |
|---|---|
| Temperature Range | 50 °C – 90 °C |
| Drying Time Range | 5 min – 9 h 55 min |
| Safety Standards | EN 61010‑1 and CE |
| Pre‑programmed Drying Cycles | 3 (PAGE, Sequencing, Gradient) |
It complies with EN 61010‑1 and CE safety standards.
The dryer provides three pre‑programmed cycles: PAGE, Sequencing, and Gradient.
