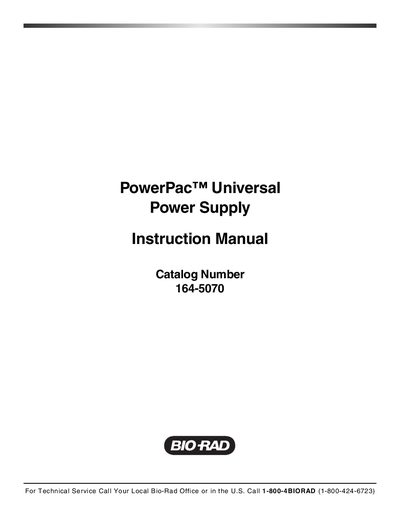

This manual introduces the features and characteristics of PowerPac Universal Power Supply.
The PowerPac Universal is a laboratory power supply that provides constant voltage, current, or power for electrophoresis applications. It features adjustable output ranges, four output terminals, and an LCD display for real‑time monitoring.
The manual includes safety guidelines, unpacking instructions, control‑panel descriptions, setup procedures, method programming, PC/PDA data transfer, troubleshooting, specifications, and warranty information.
| Output Voltage Range | 10 V – 500 V (1 V steps) |
|---|---|
| Output Current Range | 10 mA – 2500 mA (1 mA steps) |
| Output Power Range | 1 W – 500 W (1 W steps) |
| Input Power | 100‑120 V / 220‑240 V, 50/60 Hz, auto‑switching |
| Output Terminals | Four output terminals |
| Output Jacks | Four sets of output jacks |
It is tested for operation at temperatures between 0 °C and 40 °C.
At least 6 cm of clearance must be kept around the unit.
It complies with the EN 61010 international safety standard.
The power supply is warranted for one year against defects.
