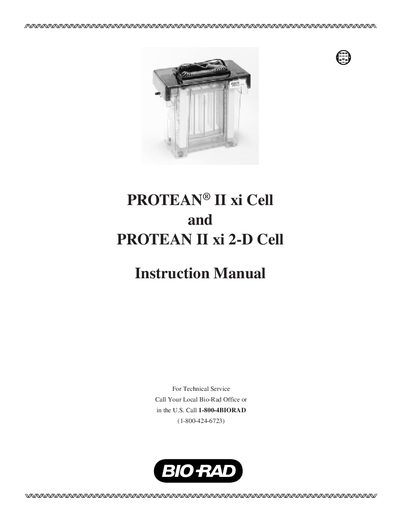

This manual describes the PROTEAN® II xi Cell and PROTEAN II xi 2-D Cell, including its components, operating principles, and methods of use. It is intended for users who will be using this equipment.
This manual describes the PROTEAN II xi Cell, a vertical slab electrophoresis instrument used for SDS‑PAGE, 2‑D, native and agarose gel electrophoresis. It covers general information, specifications, major parts, assembly of glass‑plate sandwiches, and safety guidelines.
The document also includes detailed procedures for casting gels, loading samples, running electrophoresis, maintenance, troubleshooting, and a list of accessories and reagents. Warranty and service contact information are provided at the end.
| Shipping weight | 11 kg (24 lb, 3 oz) |
|---|---|
| Overall size | 26 cm (L) x 19 cm (W) x 30 cm (H) |
| Gel size | 16 × 16 cm slab or 16 × 20 cm slab |
| Cooling core maximum flow rate | 2 L/min |
| Maximum coolant temperature | 50 °C |
| Voltage limit | 1 000 V DC |
The maximum voltage limit is 1 000 V DC.
Use Bio‑Rad Cleaning Concentrate, catalog number 161‑0722, and rinse thoroughly with distilled water.
