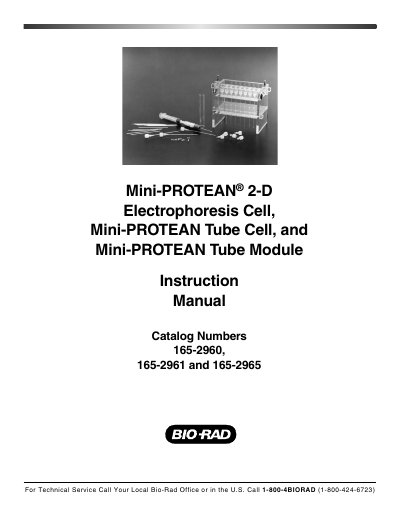

This manual provides instructions for operating the Mini-PROTEAN 2-D electrophoresis cell and accessories, including the cell, electrodes, power supply, sample cups, gel boxes, and gel pads.
The manual describes the Mini‑PROTEAN 2‑D electrophoresis system, including the 2‑D cell, tube cell, and tube module. It lists the equipment, major parts, required accessories, and solutions for both the first‑dimension (IEF) and second‑dimension SDS‑PAGE steps. Detailed procedures for casting tube gels, loading samples, and running the gels are provided.
Safety instructions cover power‑supply requirements, interlock use, and handling precautions. The document also includes a troubleshooting guide, warranty information, and an appendix of electrophoresis chemicals and consumables.
| Maximum voltage | 1500 VDC |
|---|---|
| Maximum power | 5 Watts |
| Maximum ambient temperature | 50 °C |
| Sample reservoirs | 16 |
| Capillary tubes | 200 |
The Mini‑PROTEAN 2‑D Cell includes 16 sample reservoirs.
The cell can be operated up to a maximum of 1500 VDC.
