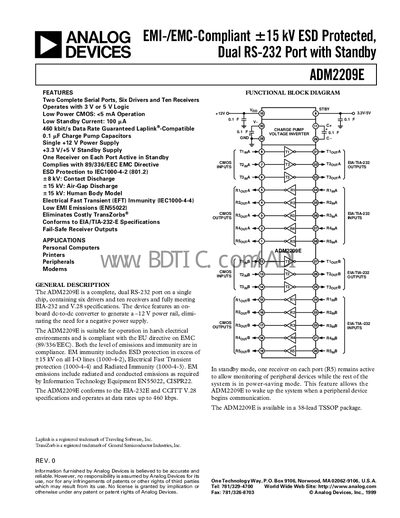

ADM2209E is an EMI-/EMC-compliant dual RS-232 port chip with 15 kV ESD protection. It includes two complete serial ports, six drivers, and ten receivers, and can be used with 3V or 5V logic. The chip features low power CMOS design with less than 5mA operation current and 100uA standby current. It also has a data rate of 460 kbit/s, guaranteed Laplink compatibility, and can be active in standby mode. The chip complies with the 89/336/EEC EMC directive, has ESD protection of 8kV contact discharge and 15kV air-gap discharge according to IEC1000-4-2 (801.2), and meets the electrical fast transient (EFT) immunity specified in IEC1000-4-4 and low EMI emissions specified in EN55022. It is suitable for applications such as personal computers, printers, peripherals, and modems.
The ADM2209E is a rugged dual‑port RS‑232 line driver/receiver that operates from a single +12 V supply, eliminating the need for a separate -12 V rail. It integrates six drivers and ten receivers on one chip, providing a compact solution for desktop and portable computers.
Key features include low standby current (<200 µA), high data rates up to 460 kbps, ESD protection up to +15 kV, and compliance with EMC directives. The device is supplied in a 38‑lead TSSOP package and offers a standby‑active receiver for wake‑on‑communication.
| Operating Voltage Range (Vpp) | +10.8 V to +13.2 V |
|---|---|
| Standby Voltage Range (Vstpy) | 3.15 V to 5.5 V |
| Supply Current (Vpp) | 5 mA |
| Standby Supply Current (Vstpy) | 100 µA typical, <200 µA max |
| Maximum Data Rate | 460 kbps (typical), 920 kbps under specific conditions |
| ESD Protection (I‑O pins) | +15 kV Human Body Model |
| Package | 38‑lead TSSOP (RU‑38) |
| Drivers | Six drivers |
| Receivers | Ten receivers |
It operates from +10.8 V to +13.2 V.
Standby current is typically 100 µA and stays below 200 µA.
The ADM2209E supports data rates up to 460 kbps (up to 920 kbps under certain load conditions).
The device is protected up to +15 kV Human Body Model on all I/O pins.
