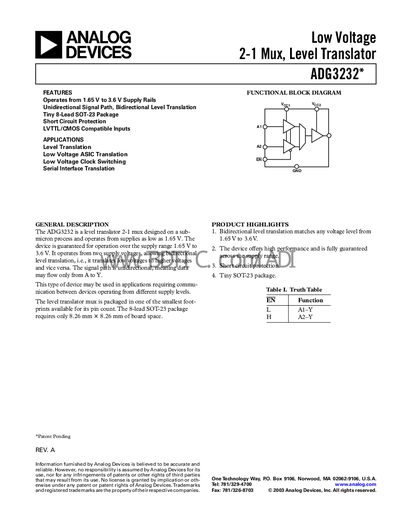

The ADG3232 is a low voltage 2-1 mux, level translator designed on a sub-micron process and operates from supplies as low as 1.65 V. The device is guaranteed for operation over the supply range 1.65 V to 3.6 V. It operates from two supply voltages, allowing bidirectional level translation, i.e., it translates low voltages to higher voltages and vice versa. The signal path is unidirectional, meaning data may flow only from A to Y. This type of device may be used for level translation, low voltage ASIC translation, low voltage clock switching and serial interface translation.
The ADG3232 is a low‑voltage 2‑to‑1 multiplexing level‑translator designed on a sub‑micron process. It operates from supply rails as low as 1.65 V up to 3.6 V and supports bidirectional level translation with a unidirectional signal path from A to Y. The device is offered in a tiny 8‑lead SOT‑23 package, making it suitable for space‑constrained designs.
The datasheet details absolute maximum ratings, typical performance characteristics, pin configuration, and ordering information. Key specifications include input‑high and input‑low voltage thresholds, propagation delay versus load and supply, and enable/disable timing. Mechanical dimensions of the SOT‑23 package and test circuit examples are also provided.
| Supply Voltage Range | 1.65 V to 3.6 V |
|---|---|
| Output High Voltage (Voh) | 0.40 V to 2.4 V depending on supply and load |
| Output Low Voltage (Vol) | 0.40 V to 0.45 V depending on supply and load |
| Enable Time (typical) | 4.5 ns to 7 ns depending on supply |
| Maximum Output Current | 25 mA |
| Package | 8‑lead SOT‑23 (RJ‑8) |
The ADG3232 operates from 1.65 V up to 3.6 V supply rails.
It is offered in an 8‑lead SOT‑23 (RJ‑8) package.
The device can source or sink up to 25 mA.
