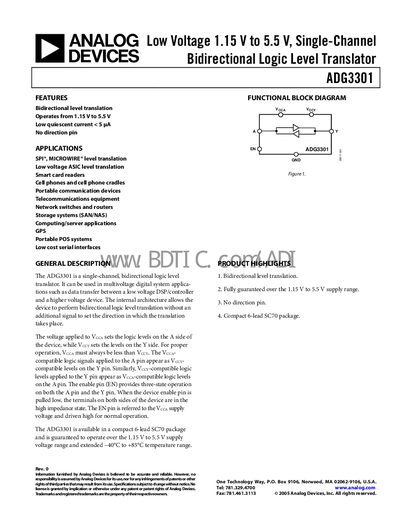

The ADG3301 is a single-channel, bidirectional logic level translator. It can be used in multivoltage digital system applications such as data transfer between a low voltage DSP/controller and a higher voltage device.
The ADG3301 is a single‑channel, bidirectional logic level translator that enables voltage level conversion between low‑voltage DSP/controllers and higher‑voltage devices without a direction pin. It operates from 1.15 V to 5.5 V and is supplied in a compact 6‑lead SC70 package.
Key specifications include low quiescent current (<5 pA), operation over an industrial temperature range (‑40 °C to +85 °C), and a maximum data rate of 50 Mbps. The device features an enable pin for three‑state operation and provides pin‑out details, absolute maximum ratings, and typical performance curves for designers.
| Supply Voltage Range (Y side) | 1.65 V to 5.5 V |
|---|---|
| Quiescent Current | <5 pA |
| Package | 6‑lead SC70 |
| Operating Temperature Range | -40 °C to +85 °C |
No, the ADG3301 has no direction pin; it performs bidirectional translation automatically.
The quiescent current is less than 5 pA.
It is available in a compact 6‑lead SC70 package.
