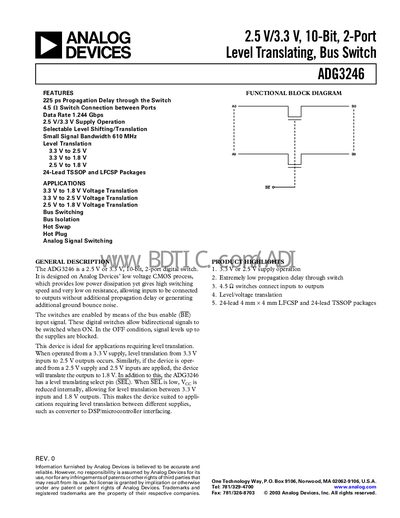

The document is the specification of ADG3246, which introduces the features of ADG3246, including 225 ps propagation delay, 4.5 ohm switch connection, 1.244 Gbps data rate, 2.5 V/3.3 V supply operation, selectable level shifting/translation, 610 MHz small signal bandwidth, 3.3 V to 2.5 V, 3.3 V to 1.8 V, 2.5 V to 1.8 V, 24-lead TSSOP and LFCSP packages.
The ADG3246 is a low‑voltage CMOS 2‑port digital switch designed for level translation and bus switching. It operates from a 2.5 V or 3.3 V supply and provides bidirectional signal routing with minimal propagation delay and low on‑resistance.
The device is offered in 24‑lead LFCSP and TSSOP packages and features a 225 ps typical propagation delay, 610 MHz small‑signal bandwidth, and a maximum data rate of 1.244 Gbps. Detailed electrical characteristics, absolute maximum ratings, and timing measurements are provided in the specification tables.
| Propagation Delay | 225 ps |
|---|---|
| Small Signal Bandwidth | 610 MHz |
| Supply Voltage | 2.5 V or 3.3 V |
The typical propagation delay through the switch is 225 ps.
The ADG3246 operates from either a 2.5 V or a 3.3 V supply.
