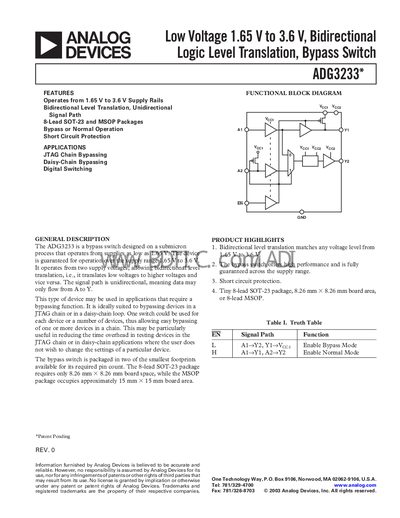

ADG3233 is a low voltage 1.65V to 3.6V bidirectional logic level translation, bypass switch from Analog Devices
The ADG3233 bypass switch provides bidirectional level translation between 1.65 V and 3.6 V supply rails and is suited for JTAG chain bypassing, daisy‑chain bypassing, and digital switching applications. It features short‑circuit protection and can operate in either bypass or normal mode.
The device is available in compact 8‑lead SOT‑23 and 8‑lead MSOP packages. Detailed specifications include supply voltage range, power consumption, switching characteristics, absolute maximum ratings, and pin configurations. Ordering information and mechanical dimensions are also provided.
| Supply Voltage Range | 1.65 V to 3.6 V |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Package Options | 8‑Lead SOT‑23 and MSOP |
The device is offered in 8‑lead SOT‑23 and 8‑lead MSOP packages.
EN is active‑low; pulling EN low enables bypass mode, while a high level selects normal mode.
The switch operates from 1.65 V to 3.6 V supply rails.
