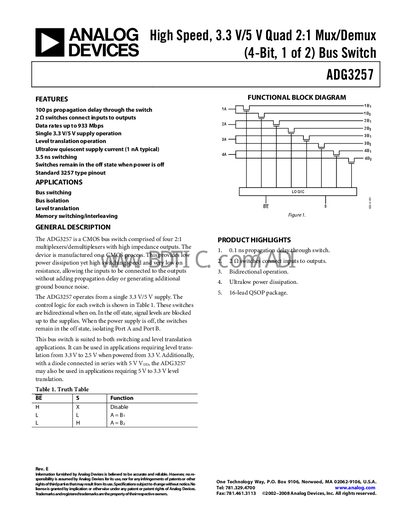

This datasheet provides details on the features and applications of the ADG3257 device. The device is a CMOS bus switch comprised of four 2:1 multiplexers/demultiplexers with high impedance outputs. The device is manufactured on a CMOS process, which provides low power dissipation, high switching speed, and very low power consumption.
The ADG3257 is a CMOS bus switch composed of four 2:1 multiplexers/demultiplexers that operate from a single 3.3 V or 5 V supply. It offers bidirectional switching, level‑translation, and isolation functions, making it suitable for bus switching, memory interleaving and mixed‑voltage applications.
Key features include a 0.1 ns typical propagation delay, ultralow quiescent current (1 nA typical), 933 Mbps maximum data rate, and a 16‑lead QSOP package. The device is rated for industrial temperature ranges (‑40 °C to +85 °C) and includes ESD protection.
| Propagation delay | 0.1 ns |
|---|---|
| Supply voltage | 3.3 V or 5 V |
| Quiescent supply current | 1 nA (typical) |
| Maximum data rate | 933 Mbps |
| Package | 16‑lead QSOP |
| Operating temperature range | -40 °C to +85 °C |
The typical propagation delay is 0.1 ns.
It operates from a single 3.3 V or 5 V supply.
The device supports up to 933 Mbps.
It is offered in a 16‑lead QSOP package.
