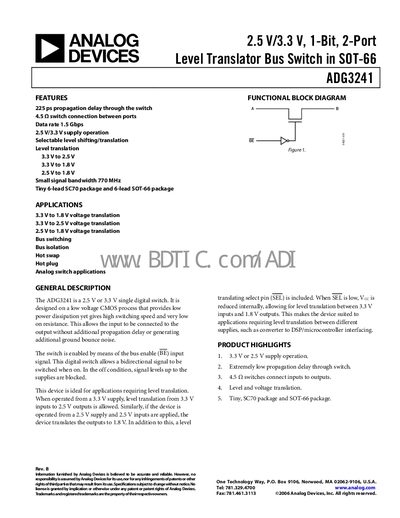

The ADG3241 is a 2.5V or 3.3V single digital switch. It is designed on a low voltage CMOS process that provides low power dissipation yet gives high switching speed and very low on resistance, making it ideal for 3.3V to 1.8V voltage translation, 3.3V to 2.5V voltage translation, 2.5V to 1.8V voltage translation, bus switching, bus isolation, hot swap, hot plug, and analog switch applications.
The ADG3241 from Analog Devices is a dual‑port level‑translator bus switch that operates from a 2.3 V to 3.6 V supply. It provides fast switching with a typical propagation delay of 0.225 ns and supports data rates up to 1.5 Gbps, making it suitable for voltage translation between 3.3 V, 2.5 V and 1.8 V domains.
The device is offered in tiny 6‑lead SC70 and 6‑lead SOT‑66 packages and includes features such as selectable level shifting, low on‑resistance, and ESD protection. It is intended for applications like bus switching, hot‑swap, and hot‑plug interfaces where low latency and high bandwidth are required.
| Supply Voltage (VCC) | 2.3 V to 3.6 V |
|---|---|
| Package Types | 6‑lead SC70 and 6‑lead SOT‑66 |
It operates from a supply voltage of 2.3 V to 3.6 V.
It is offered in tiny 6‑lead SC70 and 6‑lead SOT‑66 packages.
